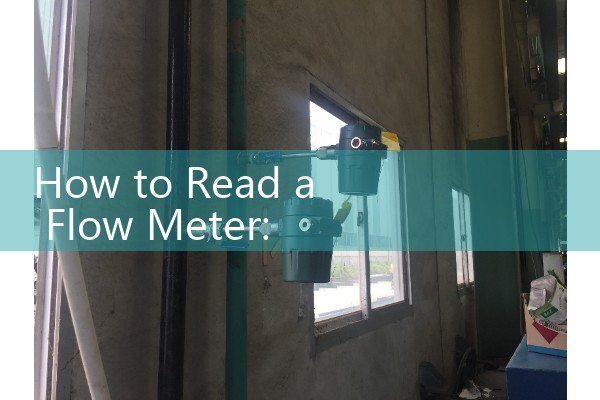

How to Read a Flow Meter: Interpreting Dial Indicators and Digital Totalizer Displays
Quick Answer: To read a flow meter you need to distinguish between total flow and flow rate. Mechanical dial indicators show non-resettable totalized volume in liters, gallons, or cubic meters. Digital totalizer displays on electromagnetic, vortex, or Coriolis meters show cumulative flow along with an instant rate readout. Always confirm the engineering unit on the display before recording data. A mismatched unit is the most common cause of batch errors.
Mechanical Dial Indicators: Total Flow Only
Many positive displacement flow meters come with a mechanical counter. Oval gear flow meters and nutating disc meters use an 8-digit non-resettable totalizer. You read the total volume just like a car odometer. The digits advance only while liquid passes through the meter. There is no instant flow rate on a pure mechanical dial. To calculate the flow rate, you must time the increment with a stopwatch and divide the volume difference by the time elapsed.
Here is a fact: many operators ignore the color-coded decimal on mechanical dials. We often see water treatment plants in Malaysia misread the last digit. Some dials have a red or white background for decimal fractions. If the dial shows 0023456.7 liters and the last digit is in a different color, that digit is a tenth of a liter. Ignoring the color leads to a tenfold error in batch volume. Always check the manufacturer nameplate for the unit and decimal indication.
Silver Instruments oval gear flow meters with mechanical registers provide a pulse output option. You can add a remote batch controller to read total and rate without modifying the mechanical dial. This hybrid setup is popular for fuel oil transfer in African power plants.
Digital Totalizer and Rate Display
Digital totalizers give you two values on one screen: cumulative flow and instant flow rate. Electromagnetic flow meters, ultrasonic flow meters, and Coriolis mass flow meters from Silver Instruments come with a backlit LCD totalizer. The display typically toggles between totalizer (e.g., 1234567 m³) and rate (e.g., 57.2 m³/h). Some models show both on a split screen. The totalizer is normally resettable via a password-protected menu. You should record the non-resettable master total in the service log before clearing the daily batch total.
In the Middle East, a chemical distributor uses a Silver Instruments AMF electromagnetic flow meter on a 20% caustic soda line. The operator reads the rate display to adjust the pump speed and checks the totalizer at the end of each shift. The instrument outputs 4-20 mA HART signals for the control room, but the local display is the primary reference for the field team. They confirm that the totalizer unit is set to kg because the process runs in mass, not volume. The density compensation is handled in the transmitter.
Most engineers skip the low-flow cut off
Dial and Digital Combo: Avoiding Misinterpretation
Some mechanical flow meters come with an add-on digital display. You might see a local dial totalizer plus a separate rate indicator with 4-20 mA. Operators sometimes mismatch the two references. The mechanical counter runs on mechanical gears and never loses data during a power outage. The digital add-on resets after power loss unless it has a battery backup. In practice, treat the mechanical dial as the primary total reference and use the digital display for rate and trending. We have seen this setup on diesel dispensing in Pacific Island depots.
Frequently Asked Questions
1. Why does my digital totalizer show a value but the mechanical dial does not change?
The digital totalizer may be counting pulses from an upstream sensor that sees flow, while the mechanical meter is stuck due to debris or gear wear. Check for obstruction in the measuring chamber. Silver Instruments oval gear meters have a strainer recommendation to prevent this.
2. Can I reset the digital totalizer on an electromagnetic flow meter?
Yes, the daily batch total can be reset through the keypad with a user code. However, a separate non-resettable master total is stored in the EEPROM for audit. Always record the master total before a batch run.
3. How do I know if the flow rate reading is live or averaged?
On many digital displays, a damping setting smoothes the rate readout. If the rate never changes quickly during a valve stroke, the damping factor may be set too high, typically 10 seconds or more. Adjust it to 2 to 5 seconds for fast response. This is common in concrete admixture batching in Latin America.
4. What unit does the mechanical dial display?
The unit is stamped on the nameplate: L, US gallons, Imperial gallons, or barrels. If the plate is missing, measure the volume into a known container and cross-check the increment. Do not assume liters without verification.
5. Does Silver Instruments supply flow meters with ATEX Ex d digital displays for Zone 1?
Yes. We offer electromagnetic and oval gear flow meters with ATEX-certified remote totalizer displays suitable for Zone 1 gas atmospheres. Provide your gas group, temperature class, and pipe size for a quote.
