Flow Meter Working Principle: Fluid Dynamics Physics for Inline Sensors
Quick Answer: Inline flow meters measure fluid directly inside the pipe using physical principles like electromagnetic induction, Coriolis force, vortex shedding, or ultrasonic waves. The choice depends on fluid conductivity, viscosity, density, and whether you need mass or volume flow. Matching the physics to the process fluid avoids measurement drift and early sensor failure.
Why Fluid Physics Decides the Inline Sensor Design
Fluid dynamics shapes every inline flow meter. An electromagnetic flow meter works on the Faraday principle of induction. It needs a conductive liquid, typically above 5 µS/cm. Water, wastewater, and chemical slurries work well. Ultra-pure water or diesel fuel will simply give no signal. In a project for a water treatment plant near Bangkok, we supplied a DN100 electromagnetic flow meter with PTFE liner and 316L electrodes. The plant reported stable readings at 200 m³/h, because the fluid conductivity was around 250 µS/cm.

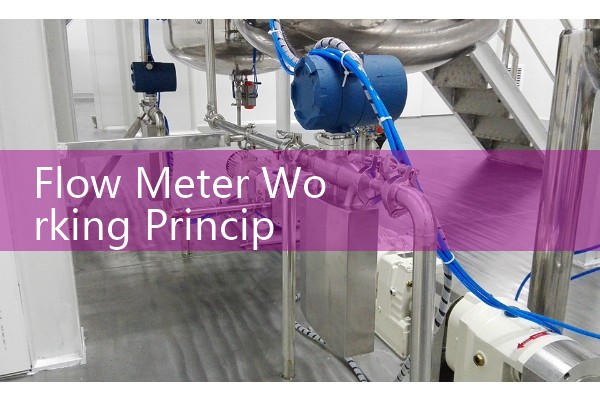

Coriolis mass flow meters use the inertia of fluid moving through vibrating tubes. They measure mass flow directly. Fluid density shifts the natural frequency, which gives density output. We often see Coriolis meters in LNG custody transfer or edible oil batching. A coconut oil exporter in the Philippines uses a Silver Instruments Coriolis meter to measure 1,200 kg/h of oil at 40 °C. The physics is simple: more mass means greater phase shift between the inlet and outlet pickoffs.
Vortex flow meters count vortices shed from a bluff body. The vortex frequency is linear to flow velocity above a Reynolds number of 5,000. In low-viscosity fluids like superheated steam or compressed air, vortex meters work well. But a heavy fuel oil with 380 cSt at 50 °C will not produce clean vortices. We replaced a vortex meter with an oval gear meter at a marine fuel terminal in Singapore. The oval gear principle depends on positive displacement, not fluid dynamics, so viscosity actually improves accuracy.
Ultrasonic flow meters measure transit-time difference or Doppler shift. Transit-time ultrasonic meters are sensitive to temperature changes because the speed of sound in the fluid varies. A 1 °C shift changes the sound speed by roughly 2 m/s in water. For a desalination plant in Oman, we calibrated an inline ultrasonic flow meter on a DN200 pipe, with a reference sound velocity table for brine at 30 to 40 °C. This physics-based compensation kept accuracy within ±0.5%.
Inline Sensor Types and Their Real-World Limits
In practice, you cannot pick a flow meter only from a datasheet. Electromagnetic flow meters require full pipe conditions and grounding rings for plastic pipes. Coriolis meters struggle with two-phase flow. Gas bubbles in liquid cause vibration damping and zero drift. We had a case from a soft drink bottler in Argentina. They used a Coriolis meter right after a carbonation tank. Entrained CO₂ bubbles caused intermittent errors up to 3%. Moving the sensor downstream of a back-pressure valve solved the issue.
Thermal mass flow meters rely on convective heat transfer. They are ideal for dry compressed air or nitrogen, where the specific heat capacity is known. If the gas composition changes, the reading shifts. We recommend Silver Instruments thermal mass flow meters for clean air supply lines in pharmaceutical plants. For a penicillin maker in Egypt, we set the meter for air with 40% relative humidity and an inlet pressure of 7 bar. That custom configuration prevented the 5% measurement drift they saw with a generic factory setting.
Oval gear flow meters are pure volum
How Inline Sensor Positioning Affects Accuracy
Fluid dynamics also governs installation. Upstream disturbances like elbows, valves, and reducers create swirl and asymmetric velocity profiles. For a vortex flow meter DN50, you need 15D straight pipe upstream and 5D downstream. We saw a natural gas compressor station in Nigeria where a vortex meter was installed after a partially closed butterfly valve. The flow profile was so distorted that the meter output was 40% lower than actual. They fixed it by relocating the meter and adding a flow straightener. Downstream requirements matter too. Coriolis meters need zero vibration mounting to avoid crosstalk at low flow rates. In a chemical dosing skid in Chile, we used flexible hoses and a rigid wall bracket for a DN15 Coriolis meter. That dropped the zero-point error from 0.02% down to 0.005%.
Get a Quote with Fluid and Pipe Data
The best meter selection starts with real numbers. Tell us your fluid, pressure in bar, temperature in °C, pipe size DN, and flow range in kg/h or m³/h. Our engineers match the sensor to the physics, not just to a catalog. Email [email protected] or call +86-25-68650347. If you need a quick answer by mobile, use WhatsApp: +86-25-52155837 or WeChat: +86 15365082610. We ship to Southeast Asia, Oceania, Latin America, Africa, and the Middle East, and we stock many models in DN15 to DN200.
Frequently Asked Questions
Q: Can a flow meter work for both water and diesel with the same sensor?
A: Rarely. An electromagnetic flow meter works with water but not diesel, because diesel has zero conductivity. An oval gear flow meter can handle both, but you must consider material compatibility and viscosity changes. We usually supply separate meter types for each fluid.
Q: What inline sensor handles high-viscosity fluids best?
A: Positive displacement meters like oval gear or gear flow meters. They are not affected by the velocity profile and become more accurate as viscosity increases. For viscosities above 1,000 cP, oval gear is the first choice. Coriolis meters also work but need careful selection to avoid pressure drop.
Q: Do I need straight run for electromagnetic flow meters?
A: Less than vortex meters, but yes. Standards recommend 5D upstream and 3D downstream for electromagnetic flow meters with good grounding. Many installers forget that partially open valves or half-filled pipes cause measurement zero drift.
Q: How do I know if my fluid is conductive enough for a mag meter?
A: Measure conductivity with a simple handheld probe. The threshold is typically 5 µS/cm. If you have well water, effluent, or chemical solution that reads above 20 µS/cm, a mag meter will work. Deionized water often drops below 0.1 µS/cm and needs a turbine or ultrasonic meter instead.
Q: Can Silver Instruments provide flow meter calibration with my actual fluid?
A: Yes. Send us a 5-liter sample of your fluid. We run it through our reference rig at your target flow, temperature, and pressure. You get a calibration certificate and the meter pre-configured. Email [email protected] with your process conditions.
