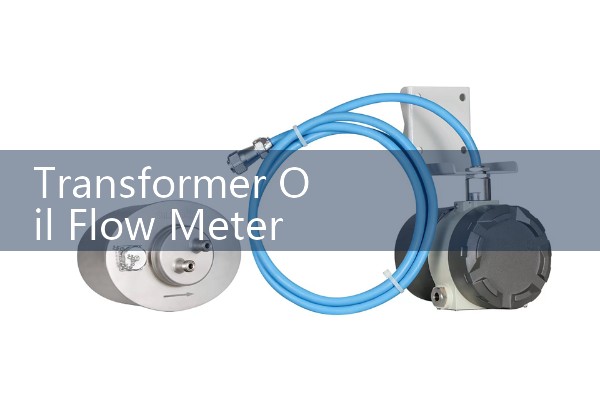

Transformer Oil Flow Meter 4 Inch: Industrial Insulation Line Safety Standards
Quick Answer: For a 4-inch transformer oil flow meter, choose an oval gear or turbine meter with ATEX Zone 2 approval and 4-20 mA HART. Silver Automation Instruments provides DN100 meters rated for mineral oil to 120 °C, with PTFE seals meeting IEC 60296. These meters integrate safety shutdown loops to stop pumps on low flow.
Why a 4-Inch Oil Line Demands a Meter Built for Safety
Forced oil cooling in transformers above 50 MVA moves oil at 30 to 200 m3/h through DN100 pipe. If oil flow stops, winding temperature spikes in seconds. A standard water meter fails here. The meter must handle 12 cSt viscosity at 40 °C, non-conductive fluid, and zero leakage. Even a small leak reduces dielectric strength. PTFE gaskets stop oil weeping, but many installers use NBR and regret it later.
In practice, oil line pressure rarely exceeds 6 bar, but cold starts push it to 10 bar. We supply flow meters with PN16 flanges as standard. For a site in Saudi Arabia with a roof-mounted conservator, we shipped PN40 flanges to handle the static head.
Safety Standards You Must Follow for Insulation Oil Flow Metering
IEC 60422 recommends monitoring oil circulation, and IEEE C57.12.00 demands no impairment of insulation. The flow meter body must be grounded to prevent static charge build-up. In many plants, the area near the transformer is classified ATEX Zone 2 because of possible oil mist. So you need an Ex-certified device. Silver Automation Instruments provides oval gear meters with Ex ia or Ex d protection and a 4-20 mA HART signal routed through a safety barrier.
We have seen EPC contractors overlook this and then face a site punch list. One project in Vietnam was delayed because the imported turbine meter lacked ATEX paperwork. After that, they switched to our pre-certified meters.
Which Flow Meter Works Best for Transformer Oil and What to Avoid
Skip magnetic and ultrasonic meters. Oil does not conduct electricity, and ultrasonic signals scatter in 4-inch pipe. Positive displacement oval gear meters are the top choice. Our SIL-OG DN100 oval gear meter measures from 10 m3/h to 160 m3/h with ±0.5% accuracy. The oil lubricates the gears, so maintenance is minimal. A transformer service team in Malaysia installed one last year and caught a pump cavitation event before the winding hotspot reached alarm level. They set a low-flow alarm at 15 m3/h using the HART output.
>
Turbine meters also fit if you need fast response up to 200 m3/h. But be careful. When oil temperature drops to 5 °C, viscosity doubles. Our turbine meters include a built-in temperature sensor for viscosity compensation over HART. That keeps the reading stable without need for an external flow computer.
Installation Shortcuts That Cause Errors
Mount the DN100 meter with 10 pipe diameters upstream, 5 downstream. Do not place it right after a control valve. A site in Indonesia saw an 8% error because the installer ignored the straight run. Also, add a three-valve bypass so you can isolate the meter without stopping cooling. Almost every utility in Malaysia uses this setup. One more point: keep the 4-20 mA cable shielded and grounded at one end only. Stray magnetic fields from the bushing will inject noise otherwise.
How to Order a 4-Inch Transformer Oil Flow Meter
Give us your oil type, flow range, maximum temperature, and if the zone is classified. That is all we need. A standard DN100 package from Silver Automation Instruments includes a carbon steel or stainless body, PN16 or PN40 flanges, PTFE seals, ATEX transmitter, and local display option. We ship to Australia, Southeast Asia, the Middle East, Africa, and Latin America. Lead time is 2 to 3 weeks.
Request a quote now. Send your oil type, flow range (m3/h), pipe size (DN), and operating temperature to our team. We will reply with a datasheet and price within one business day.
Frequently Asked Questions
Can I use an electromagnetic flow meter for transformer oil?
No. Transformer oil is non-conductive. An oval gear or turbine meter is required.
What pressure rating is safe for a 4-inch insulation oil line?
PN16 covers most systems. We can supply PN40 if cold-start pressure exceeds 10 bar.
Do I need an ATEX certificate for flow meters mounted on a transformer?
If the area is classified Zone 2, yes. Silver Automation Instruments provides Ex ia and Ex d certified meters.
What is the typical flow range for a DN100 transformer oil flow meter?
Oval gear meters range from 10 to 160 m3/h. Turbine meters reach 200 m3/h. Provide your min and max flow to get the right span.
How do you prevent leaks in flanged connections for mineral oil?
Use PTFE or FKM gaskets, not NBR. Follow the bolt torque spec and test at 1.5 times operating pressure. Routine checks per IEC 60422 catch early seeps.
