GPI Electronic Digital Flow Meter Calibration Procedure: Tuning Pulses Per Liter for Hydrocarbons
Quick Answer: To calibrate a GPI electronic digital flow meter for hydrocarbons, compare the meter reading against a prover tank or master meter. Calculate the new pulses per liter value using the field correction formula. Enter the new value and verify with two stable runs until the error is below 0.5 percent.
This procedure applies to diesel, kerosene, light crude, mineral oils and similar hydrocarbon liquids.
Why Pulses Per Liter Tuning Matters
A digital flow meter outputs a pulse for a fixed volume. The pulses per liter value, often called K factor, changes with viscosity, temperature, wear and installation. A meter that is not tuned can read 2 to 5 percent high or low. For a fuel truck loading 20,000 liters per day, a 3 percent error is 600 liters lost.
We have seen this many times on customer sites. A fuel distributor in Malaysia tested a diesel meter with a 2,000 liter prover tank. The meter showed 2,000 liters. The prover showed 1,940 liters. The K factor was corrected from 850 to 878. After that the meter matched within 0.3 percent.
Hydrocarbon viscosity changes with temperature. Diesel at 10 °C flows different from diesel at 35 °C. Most GPI electronic digital flow meters do not have automatic temperature compensation. That is why you calibrate at normal operating temperature.
Tools and Safety
You need a prover tank or master flow meter, a frequency counter, a stopwatch, a thermometer and a density cup for blended fuels. In hazardous areas use ATEX Zone 1 or Zone 2 rated test equipment. Do not open the meter electronics while power is live. Drain static charge before connecting test leads on a fuel skid.
Step by Step Calibration Procedure
First, record the current pulses per liter from the GPI display or configuration menu. Second, fill the system with the same hydrocarbon. Remove air bubbles. Air is the most common cause of unstable pulse output.
Third, run a known volume through the meter. Use a 200 or 500 liter prover tank if possible. Run at your normal loading rate. Stop the flow when the prover tank reaches its marked level.
Fourth, compare the meter reading to the prover volume. If the meter reads 515 liters and the prover volume is 500 liters, the meter is over reporting by 3 percent.
Fifth, calculate the new pulses per liter. The formula is below.
New pulses per liter = current pulses per liter x actual prover volume / meter reading
If the current value is 1,000 pulses per liter, the meter reading is 515 liters and the prover volume is 500 liters, the new value is 971 pulses per liter.
Sixth, enter the new value and save the setting. Run the test again. Repeat until the error is below 0.5 percent for custody transfer or 1 percent for batching. Most engineers skip the second run. That is a mistake. A single run can hide air pockets an

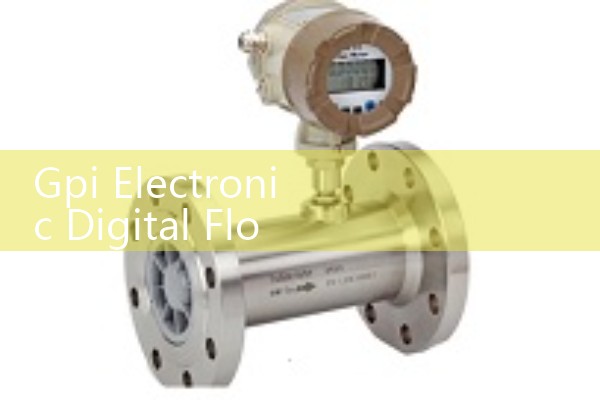

_600x400.jpg)
Field Correction Formula
Use this formula every time. New K factor = old K factor x actual volume / indicated volume. If the meter under reports, the new K factor goes up. If the meter over reports, the new K factor goes down. This logic works for GPI digital meters, oval gear meters, turbine meters and Coriolis meters with pulse output.
Common Calibration Errors on Hydrocarbons
Do not use water to calibrate a hydrocarbon meter. Water has different surface tension and lubricity. A meter tuned on water can shift 1 to 4 percent on diesel. Always calibrate with the actual product or a fluid with similar viscosity.
Also watch back pressure. Light oils can form vapor when pressure drops. Install a back pressure valve after the meter. Keep at least 0.3 to 0.5 bar back pressure.
Wear changes K factor too. Gears and rotors wear after long service. Calibration corrects for minor wear. If the error is above 5 percent, inspect the measuring chamber first.
Silver Instruments Hydrocarbon Flow Meters
Silver Instruments supplies oval gear flow meters, Coriolis mass flow meters and turbine flow meters for hydrocarbon service. Typical models cover DN15 to DN100, pressure up to 40 bar, temperature up to 120 °C and viscosity from 0.5 cP to 1,000 cP. Output options include pulse, 4-20 mA and HART.
If you need a meter for diesel, fuel oil, light crude or solvents, send us your pipe size in DN, flow range in liters per hour, viscosity in cP, pressure in bar and temperature in °C. We will recommend a meter and provide the K factor data before shipment.
Contact Silver Automation Instruments. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610.
FAQ
How often should I calibrate a GPI electronic digital flow meter for hydrocarbons?
For custody transfer, calibrate every 3 to 6 months. For internal batching, calibrate every 6 to 12 months. Calibrate after product changes or meter movement.
What is a typical pulses per liter value for diesel?
It depends on meter size and sensor type. Small oval gear meters may output 500 to 2,000 pulses per liter. Larger turbine meters may output 100 to 500 pulses per liter.
Can I calibrate a hydrocarbon meter with water?
Only for a quick functional test. Final calibration must use the actual hydrocarbon or a fluid with similar viscosity and temperature.
Why does the pulse output become unstable during calibration?
Air bubbles, low back pressure, a partly blocked strainer or an undersized pulsation damper can cause unstable output. Flush the line and repeat the test.
Does Silver Instruments calibrate flow meters before shipment?
Yes. Every hydrocarbon flow meter is wet calibrated on a reference test rig. We provide the calibration certificate with K factor, viscosity, temperature and test pressure data.
