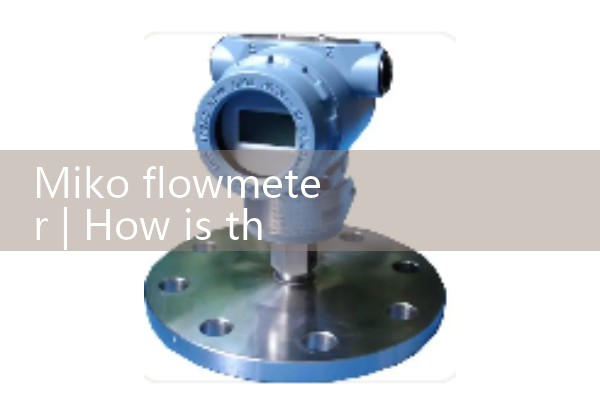

『Orifice flowmeter instrument』Related information(clamp on meter|electromagnetic meter|venturi meterrotameter|orifice meter|ultrasonic flow meter|mass flow meter|coriolis mass flow meter|coriolis flow meter|magnetic flow meter|magmeter flow meter|magflow flow meter|mag meter flow meter|electromagnetic flow meter|vortex flow meter|turbine flow meter|thermal mass flow meter|thermal flow meter|rotameter flow meter)
1. Cable tension sensor
2. Conditions of use and installation requirements for integrated orifice flowmeter
Conditions of use and installation requirements for integrated orifice flowmeter
1. Conditions of use for integrated orifice flowmeter. Integrated orifice flowmeter is a commonly used flow measurement instrument, and its usage conditions mainly include the following aspects: fluid medium: Integrated orifice flowmeter is suitable for measuring the flow rate of fluid media such as liquid, gas, or steam. However, it should be noted that different fluid media have different requirements for the material, structure, and measurement accuracy of flow meters. Therefore, when selecting and using an integrated orifice flowmeter, it should be ensured that the fluid medium matches the material and measurement range of the flowmeter. Fluid state: The fluid should be in a stable flow state to avoid excessive turbulence, eddies, or pulsations after sailing. These unstable factors can affect the measurement accuracy and stability of the flowmeter. Temperature and pressure: The working temperature and pressure of the fluid should be within the design range of the integrated orifice flowmeter. Temperatures and pressures beyond the design range may cause damage to the flow meter or a decrease in measurement accuracy. Pipeline conditions: The pipeline for installing the flowmeter should have a certain degree of rigidity and stability to avoid the impact of pipeline vibration or deformation on the flowmeter. At the same time, the diameter, wall thickness, and material of the pipeline should also meet the installation requirements of the flowmeter. Environmental conditions: The flowmeter should be installed in h
II. Installation Requirements for Integrated Orifice Flow Meter In order to ensure accurate measurement and stable operation of the integrated orifice flow meter, the installation requirements are as follows: Installation position: The flow meter should be installed on the straight section of the pipeline, avoiding installation on bends, branches, or reduced diameters of the pipeline.
. The unstable fluid flow state in these areas can affect the measurement accuracy of the flowmeter. The installation position of the flowmeter should be easy to observe and operate, while considering the convenience of maintenance and replacement. Front and rear straight pipe sections: A certain length of straight pipe section should be installed in front and behind the flowmeter to ensure stable flow of fluid in the measurement area of the flowmeter. Generally speaking, the length of the front straight pipe section should not be less than 10 times the diameter of the pipeline, and the length of the rear straight pipe section should not be less than 5 times the diameter of the pipeline. Installation direction: The installation direction of the flowmeter should meet its design requirements. For flow meters installed horizontally, the direction of the arrow should point towards the direction of the flow of the fluid; For flow meters installed vertically, it should be ensured that the measuring orifice plate is perpendicular to the horizontal plane. Sealing and fastening: A sealing gasket should be installed at t
