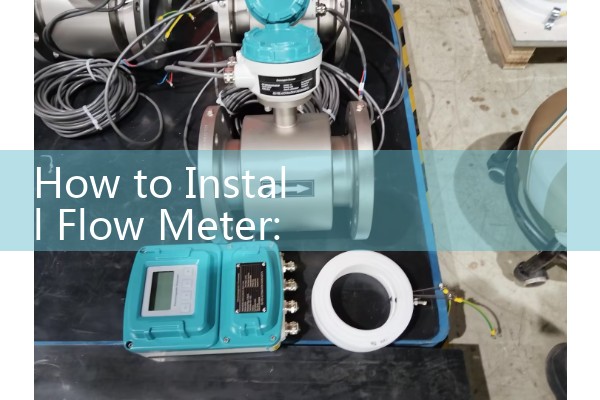

How to Install Flow Meter: Overcoming Constrained Spaces with Integrated Vane Conditioners
Quick Answer: In a tight pipe run, choose a flow meter with an integrated vane conditioner or add a vane conditioner directly upstream. This setup can reduce required straight run from 15D or 20D down to 2D or 3D for many liquid, gas, and steam applications. Send your pipe size, fluid type, pressure in bar, temperature in °C, and flow range to Silver Instruments for a direct model selection.
Installing a flow meter in a short straight pipe section is common on skids, offshore platforms, and process plants in Southeast Asia, the Middle East, and Latin America. Standard flow meter manuals often ask for 10D to 20D of upstream straight run. Real pipe spaces rarely have that much room.
In practice, packaged skid builders care more about footprint than ideal pipe run. The fix is not always a larger skid. It is usually a flow meter with built-in flow conditioning.
Why Straight Run Matters in Tight Installations
A flow meter measures velocity or mass flow based on a stable flow profile. Elbows, tees, valves, and pumps create swirl and asymmetric velocity profiles. These distortions cause repeatable errors. A vortex flow meter may read high or low if installed three diameters after a partially open valve. An electromagnetic meter can also show unstable readings if the profile is heavily skewed.
Most manufacturers state a minimum straight run. For a standard vortex flow meter, the requirement can be 15D upstream and 5D downstream. In a DN100 line, that means 1500 mm of straight pipe before the meter. Many packaged skids cannot provide that.
How an Integrated Vane Conditioner Helps
An integrated vane conditioner sits inside the flow meter body or in a short inlet section. It forces the flow through a set of vanes or a plate with holes. This breaks up swirl and rebuilds a symmetric velocity profile. The conditioned flow then reaches the sensor with less distortion.
Silver Instruments offers vortex flow meters with integrated vane conditioner options for DN15 to DN300 lines. The design reduces upstream straight run to 2D or 3D in most cases. Accuracy stays within ±0.5 percent of rate for liquids and ±1.0 percent for gases and steam depending on the application.
Here is the thing. A vane conditioner cannot fix a meter installed in the wrong flow direction or a partially full pipe. But it solves the most common problem in tight spaces: swirl and profile distortion.
Step By Step Installation in a Tight Space
Step 1. Measure the available straight pipe. Note the exact inner diameter and the distance between the last upstream disturbance and the planned meter location.
Step 2. Check the flow direction. The meter body or flow conditioner has a marked upstream side. Install the vane conditioner or integrated inlet section in the correct orientation.
Step 3. Use concentric alignment. For flanged meters, tighten bolts in a cross pattern. Misalignment of even 1 mm on a DN40 meter can disturb the flow profile and add measurement noise.
Step 4. Match the gaskets. Keep gasket inner diameter equal to the pipe inner diameter. A gasket that protrudes into the flow stream acts like a small obstruction and defeats the vane conditioner work.
Step 5. Ground and wire the transmitter. For electromagnetic flow meters, follow the grounding ring requirements. For vortex and ultrasonic meters, route signal cables away from variable frequency drive cables.
Step 6. Run a zero check or low flow cut off check. Record the process temperature and pressure during the check. Compare the meter output with a reference value if available.
Real Cases in Constrained Spaces
A water treatment contractor in Vietnam had a DN80 skid with only 400 mm of inlet pipe before an electromagnetic flow meter. The standard model wanted 5D of straight run. We supplied a compact body with a short inlet conditioner section. The meter passed the site acceptance test with an error under ±0.3 percent.
A gas distributor in Nigeria installed a DN50 vortex flow meter on a compressed air line with a 2D space after an
In a chemical plant in Chile, a DN25 thermal mass flow meter was mounted in a vertical pipe with limited access. The vane conditioner allowed a straight run of 3D. The flow meter gave stable readings for compressed air with pressure at 7 bar and temperature at 40 °C.
When to Choose Integrated Vane Conditioning
Integrated vane conditioning works well for vortex flow meters, turbine flow meters, and thermal mass flow meters in gas and liquid service. It is also useful for differential pressure meters where the primary element needs a clean profile. Electromagnetic flow meters often need less straight run than vortex meters, but they still benefit from a flow conditioner in severely distorted flows.
If the fluid is conductive above 5 µS/cm, an electromagnetic flow meter from Silver Instruments may fit a tight space without a vane conditioner. For gas, steam, or hydrocarbon liquid, a vortex flow meter with an integrated conditioner is usually more practical.
Coriolis mass flow meters are less sensitive to flow profile. But they can be larger and heavier in larger line sizes. In a DN80 skid, a Coriolis meter may not fit the physical space even if it tolerates the profile distortion.
What to Send for a Quote
Most engineers skip this part. Then the quote process slows down. Send complete process data in the first inquiry.
Include pipe size in DN, fluid name, minimum and maximum flow rate, operating pressure in bar, temperature in °C, viscosity in cP for liquids, and ambient temperature for electronics. For gas mass flow, we may add a pressure transmitter and a PT100 temperature sensor for compensation. Add the signal output you need such as 4-20 mA HART, Modbus RTU, or pulse. Mention hazardous area classification like ATEX Zone 1 or IECEx Zone 2.
Example: DN50 compressed air, 80 to 800 kg/h, 7 bar, 35 °C, 4-20 mA HART, safe area, inlet space 3D. With those values, Silver Instruments can confirm a vortex flow meter with an integrated vane conditioner in one working day.
FAQ
What is the minimum straight run for a flow meter with an integrated vane conditioner?
Most applications allow 2D to 3D upstream and 2D downstream. The exact value depends on fluid type, upstream disturbance, and the meter type. Send a simple pipe layout sketch to Silver Instruments for confirmation.
Can I install a flow meter vertically in a tight space?
Yes. Vertical installation works for many liquid, gas, and steam meters if the pipe stays full. For liquid service, install the meter in an upward flow direction to reduce bubbles. For gas, either direction can work if condensate drains away from the sensor.
Does an integrated vane conditioner add a large pressure drop?
It adds a small pressure loss. In most turbulent flow applications, the loss is below 0.05 bar. For low pressure gas lines, include your minimum line pressure with the inquiry so the engineering team can check the overall pressure budget.
Which flow meter types benefit most from vane conditioners?
Vortex, turbine, thermal mass, and differential pressure flow meters gain the most. Electromagnetic flow meters can work without one in many cases. Coriolis meters rarely need one because they measure mass directly.
How do I get a price for a tight space flow meter installation?
Call Silver Instruments at +86-25-68650347. Or send a WhatsApp message to +86-25-52155837. WeChat is +86 15365082610. Include pressure in bar, temperature in °C, pipe size in DN, and flow range. The sales team will reply with a model and price.
Silver Automation Instruments supplies flow meters and transmitters to end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We are a flow meter manufacturer and supplier, not a catalog reseller. Common industries include oil and gas, water and wastewater, chemical, food and beverage, and marine. For tight installation jobs, the right meter body and conditioner combination saves space, time, and calibration cost.
