How Does a Coriolis Mass Flow Meter Work: Oscillating Fluid Dynamics Physics
Quick Answer: A Coriolis mass flow meter directly measures mass flow by oscillating one or two tubes. The fluid passing through these vibrating tubes generates a Coriolis force, causing a tiny phase shift or twist in the tube. This phase difference is proportional to the mass flow rate. No need to measure pressure, temperature, or density separately. You get true mass flow in kg/h, even for gases, slurries, and viscous liquids.
The Core Physics: Not Just Another Flow Meter
Most engineers first encounter the Coriolis effect in geography class. The Earth rotates, and moving air masses deflect. In a flow meter, we create our own artificial rotation. We vibrate a U-shaped or straight tube at its natural frequency. This vibration supplies an oscillating angular motion. When fluid flows through that vibrating tube, inertia decides to push back. Inlet side and outlet side experience opposite Coriolis forces. The result is a subtle twisting or bending of the measuring tube.
Here is the thing. The twist is tiny. We talk a phase shift measured in microseconds. But it is perfectly repeatable. Two electromagnetic sensors pick up the timing difference between the inlet and outlet ends of the tube. That time delay, Δt, is directly proportional to the mass flow rate. Multiply it by a calibration constant, and you have mass flow in kg/h or lb/min. No square root extraction, no temperature compensation for volume. Just direct mass measurement.
Oscillation Mechanics: Why the Meter Tubes Vibrate
A drive coil, placed at the centre of the tube assembly, forces the tubes to vibrate at their resonant frequency. Usually this is between 80 Hz for larger meters and 1,200 Hz for tiny DN15 units. The stiffer the tube and the lower the fluid density, the higher the frequency. That same frequency also gives us density. Because the meter electronics track how fast the tube oscillates, we can calculate fluid density in kg/m³ in real time. For a sugar refinery in Thailand measuring brix, this is gold. One device delivers mass flow, density, and temperature on a single platform.
The tubes are made from 316L stainless steel, Hastelloy C-22, or sometimes super duplex for seawater. A DN80 Coriolis meter weighing 85 kg handles crude oil at 150 °C and 40 bar. It vibrates with an amplitude less than 1 mm. Operators cannot feel it. The process does not care. But inside that sensor housing, the motion is precise enough to measure 0.1% of flow rate accuracy.
Inside the Sensor: From Phase Shift to 4-20 mA Output
Silver Automation Instruments builds meters with dual bent tubes or single straight tube designs. The dual tube design is common for line sizes DN15 to DN200. Because you have two tubes oscillating in opposite directions, external vibration cancels out. That matters in offshore platforms off the coast of Nigeria. A single straight tube design works better for shear-sensitive fluids or food applications. Think yogurt or tomato paste. No dead legs, no clogging.

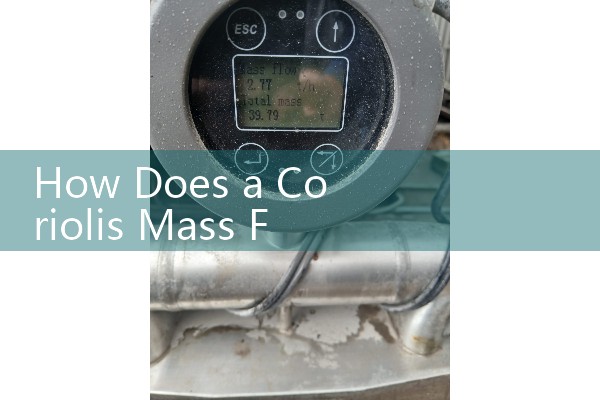

A PT100 temperature sensor is integrated into the flow tube wall. It provides the fluid temperature needed for secondary density calculation and tube stiffness correction. The transmitter, mounted directly on the sensor or separated for high heat, powers the drive coil and reads both pick-off sensors. We use a digital signal processor inside the converter. It filters out process noise above 100 Hz and computes the phase difference with extreme resolution. The output can be 4-20 mA HART, pulse, Modbus RTU, or even Profibus PA. Most plants in Southeast Asia still ask for 4-20 mA HART plus a pulse for totalisation. It is simple and compatible with old PLC racks.
Why Mass Flow Beats Volume Every Time
A turbine meter or vortex meter gives you volume at line conditions. Then you need pressure and temperature compensation to estimate mass. That adds cost. A Coriolis meter skips that chain. For compressed natural gas dispensing in Brazil, the mass meter directly shows kg delivered. No arguments about billing. For a chemical dosing application making polyol blends, the mass meter copes with varying viscosity from 50 cP to 1,000 cP. The meter does not ca
_600x400.jpg)
We have seen an egg processing plant in Vietnam replace three devices (mag meter, densitometer, Pt100) with one Coriolis meter DN25. Payback came in 8 months. Less wiring, less calibration, fewer spares. That is the real decision angle for an SME with 50 employees. Operational simplicity.
Installation: Zero Stress, Not Just Zero Check
Coriolis meters are sensitive to mechanical stress. If you bolt a heavy meter into a misaligned pipe, you preload the tubes. That shifts the zero. Most engineers skip this part and then complain about drift. Always pipe the meter with flexible connections or solid pipe supports within 500 mm of the meter flanges. We ship every Silver Instruments meter with a factory zero calibration. On site, you run a zero verification with the pipe full of fluid, valves closed, and zero flow. It takes 30 seconds.
For hygienic lines, we supply tri-clamp connections to DN50. For high-pressure oil, we use PN100 flanges with RTJ gaskets. ATEX Zone 1 certification is standard for gas hazardous areas. A customer in Dubai ordered four DN100 Coriolis meters for a jet fuel loading skid. They needed IECEx and PED both. We supplied the meters with 316L tubes and a remote transmitter mounted 50 meters away in the control room. Signal cable is a shielded 9-pin connector. Not rocket science.
Choosing the Right Coriolis Meter: Typical Questions
What fluid? Is it abrasive slurry or sanitary milk? For mining slurries with magnetite, we specify a straight tube meter with tungsten carbide lining. For dairy, we go for a DN25 dual bent tube with 0.15 μm Ra polished surface. What flow range? A DN15 meter covers 0 to 300 kg/h. A DN100 goes up to 150,000 kg/h. Tell us your minimum and maximum mass flow. Also tell us process temperature and pressure. The meter is rated for 200 °C standard, 350 °C with remote electronics. Pressure drop matters too. Because of the bent tubes, you can see a pressure loss of 0.2 to 0.8 bar depending on flow velocity. We size it for you.
Need a quote? Send us your fluid name, mass flow range in kg/h, temperature (°C), pipe size (DN), and flange rating. We reply within 24 hours with a datasheet and price. Silver Instruments is based in China, shipping to over 50 countries. Our engineers answer technical questions in English, Spanish, and French.
FAQ: Coriolis Mass Flow Meter Physics and Applications
Does a Coriolis meter work with gases?
Yes, it measures true mass flow of gases directly. Density is low, so tubes vibrate at higher frequencies. For natural gas at 20 bar, a DN50 meter offers 0.5% accuracy of rate.
Can I measure two-phase flow like wet steam?
Modern transmitters handle light two-phase conditions. Heavy gas slugs degrade accuracy. A platform in Indonesia uses a D15 meter with a special entrained gas algorithm to batch adhesive with CO2 bubbles. It works within 2% error.
What maintenance does a Coriolis flow meter need?
No moving parts. No bearings. Inspect for coating build-up every 6 months in sticky applications. Perform a zero check every 3 months. That is all.
Is a straight tube or bent tube better?
Bent tube gives higher sensitivity at low flows. Straight tube drains better. For chocolate sauce with 1,200 cP, we suggest a straight single tube.
How do I get pricing for a seawater flow meter in a desalination plant?
Email us at [email protected] with your flow rate and pipe material (usually 2507 super duplex). We include a full technical proposal and competitive price.
