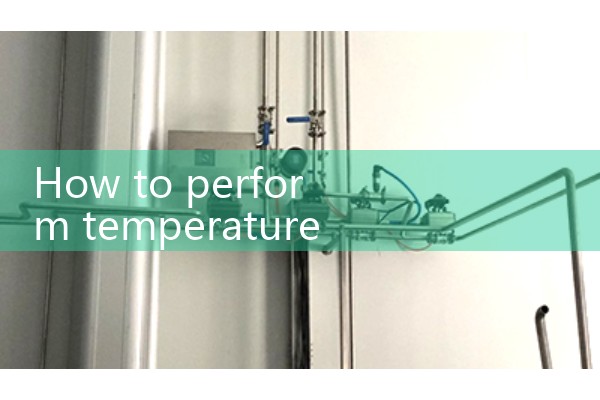

How to perform temperature and pressure compensation when measuring steam with a vortex flowmeter?

『Steam of vortex flowmeter』Related information(clamp on meter|electromagnetic meter|venturi meterrotameter|orifice meter|ultrasonic flow meter|mass flow meter|coriolis mass flow meter|coriolis flow meter|magnetic flow meter|magmeter flow meter|magflow flow meter|mag meter flow meter|electromagnetic flow meter|vortex flow meter|turbine flow meter|thermal mass flow meter|thermal flow meter|rotameter flow meter)

Do you know the advantages and disadvantages of steam vortex flowmeter and balance flowmeter?

Steam vortex flowmeter and balance flowmeter each have their own advantages and disadvantages, as follows: Advantages of steam vortex flowmeter: Strong measurement function applicability: It is a commonly used flowmeter in steam measurement, suitable for measuring the volume flow of steam. With auxiliary instruments such as pressure transmitters, temperature sensors, and intelligent flow integrators, it can accurately calculate the mass flow of steam.. Outstanding performance advantages: low pressure loss, which can reduce energy loss to fluid systems. Wide measuring range, suitable for measurement needs of different flow rates. High measurement accuracy, able to provide accurate data for flow measurement. Without moving parts, it reduces the probability of failure caused by component wear and tear, and has high reliability. Small maintenance volume, good long-term stability, reducing daily maintenance costs and workload. Strong anti-interference ability: almost unaffected by parameters such as fluid density, pressure, temperature, viscosity, etc., it can maintain measurement accuracy under different working conditions. Flexible application scenarios: Especially suitable for use in working conditions with unclear flow in the early design stage, and also suitable for trade measurement and settlement. Disadvantage: No obvious drawbacks have been mentioned yet. Advantages of balanced flowmeter: Clever structural design: As a new type of differential pressure measuring instrument, it can achieve high-precision and long-term stable measurement with relatively small permanent pressure loss in exchange for larger stabl

e differential pressure values under the requirements of shorter straight pipe sections. Excellent comprehensive performance: It has the advantages of easy installation, reliability, safety, high temperature resistance, and wide applicability of standard throttling devices. High precision, capable of providing accurate flow measurement data. The straight pipe section has low requirements, saving installation space and costs. Wide range ratio, able to adapt to measurements in different flow ranges. Low permanent pressure loss, reducing energy consumption. Overcoming habit defects: Overcoming the shortcomings of standard throttling devices such as debris retention, blockage, easy edge wear, and high maintenance costs. Clear applicable working conditions: Suitable for measuring stable flow, high temperature, high pressure and other working conditions, such as external network outlet summary table and branch summary table. Disadvantage: Not suitable for working conditions with large flow fluctuations, which may result in inability to measure low flow limits or insufficient measurement.

2. How to perform temperature and pressure compensation when measuring steam vortex flowmeter? During the measurement of steam vortex flowmeter, temperature and pressure compensation is mainly carried out to cope with the changes in steam density with temperature and pressure, ensuring accurate measurement. The specific method is as follows: Generally, pressure and temperature sensors are installed on site, and the pressure, temperature, and flow data are uploaded to the flow integrator for calculation, so as to obtain the standard flow rate. Compensation method: Measuring superheated steam: If either temperature or pressure changes, t
